Is your car’s battery constantly dying, or are you hearing strange noises from under the hood? Your alternator might be the culprit.

But how can you be sure without spending money on a mechanic? You can test your alternator yourself, right off the car, with just a few simple tools. Imagine saving time and money by quickly finding out if your alternator is working properly or needs replacement.

Keep reading, and you’ll learn easy, step-by-step methods to check your alternator’s health—no special skills required. This guide puts the power in your hands to keep your car running smoothly.

Tools Needed

Testing an alternator off the car requires a few essential tools to ensure accurate results. Having the right equipment not only makes the process smoother but also helps you avoid mistakes that could lead to unnecessary repairs. Let’s break down the tools you’ll need and why each is important.

Multimeter

A multimeter is your best friend when testing an alternator. It measures voltage, current, and resistance, which are crucial for diagnosing alternator health. You’ll want a digital multimeter for clear readings and ease of use.

Make sure your multimeter can measure at least 20 volts DC. This range covers the typical output of a good alternator. Without it, you won’t be able to verify if the alternator is charging correctly.

Battery Charger

Before testing, the alternator’s battery needs to be fully charged. A battery charger helps bring the battery to a proper voltage level for accurate testing. If the battery is weak, the alternator might show false failure signs.

Using a battery charger also saves time. It prevents you from chasing problems that don’t exist by ensuring the starting point—the battery—is solid.

Basic Hand Tools

You’ll need some basic hand tools to safely remove and handle the alternator. Common tools include wrenches, screwdrivers, and pliers. These help disconnect wires and bolts without damaging components.

Having a clean workspace and organized tools makes the job less frustrating. It also reduces the risk of losing small parts or causing accidental shorts during testing.

Safety Precautions

Testing an alternator off the car requires careful attention to safety. Electrical components can cause shocks or short circuits. Following proper safety steps protects you and your vehicle parts. Use the right tools and work calmly to avoid accidents.

Disconnecting The Battery

Always disconnect the battery before removing the alternator. This stops electrical flow and reduces shock risk. Use a wrench to loosen the negative terminal first. Secure the cable away from the battery to prevent contact. Never touch both battery terminals at the same time.

Handling Electrical Components

Handle wires and connectors gently to avoid damage. Wear insulated gloves to protect from electric shocks. Avoid touching metal parts on the alternator during testing. Keep tools dry and in good condition for safe use. Check for signs of wear or corrosion on wires before testing.

Working In A Safe Environment

Choose a clean, dry, and well-lit workspace. Remove any flammable materials nearby. Use a sturdy workbench or table for stability. Keep a fire extinguisher nearby in case of emergencies. Make sure the area is free from distractions to stay focused.

Removing The Alternator

Removing the alternator is a crucial step before testing it off the car. It allows you to inspect the unit thoroughly and avoid interference from other engine components. Taking your time during this process helps prevent damage to the alternator and surrounding parts.

Locating The Alternator

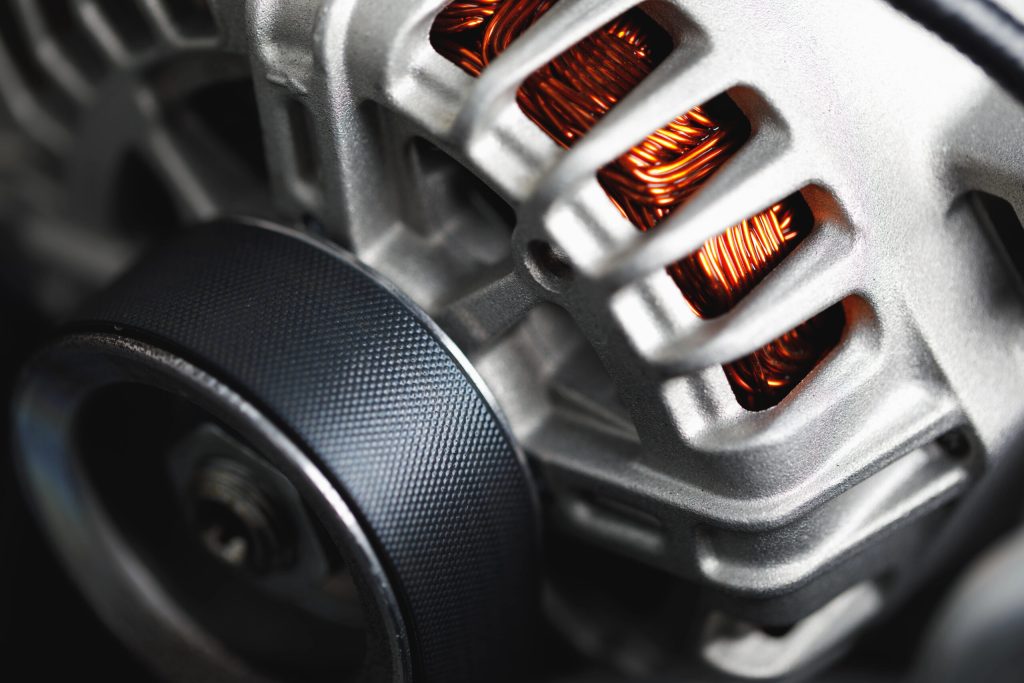

The alternator is usually mounted on the front of the engine, near the belt system. It looks like a small metal cylinder with vents and a pulley attached. If you’re unsure where it is, check your vehicle’s manual or look for the belt that drives the alternator pulley.

Have you ever been surprised at how tightly packed the engine bay can be? Finding the alternator can sometimes require moving or removing other parts for better access.

Disconnecting Electrical Connections

Before removing the alternator, disconnect the battery to avoid any electrical shocks or shorts. Next, carefully unplug the wiring harness connected to the alternator. You’ll often find a main power cable secured by a nut and a smaller plug for the voltage regulator.

Use a wrench to loosen the nut and a gentle hand to disconnect the plugs. Damaging these connectors can cause problems later, so take your time and keep track of each wire.

Unbolting And Removing The Unit

Look for the bolts that hold the alternator to the engine bracket. These are usually two or three bolts that can be removed with a socket wrench. Once the bolts are out, the alternator might still be snug, so gently wiggle it free.

Keep in mind the weight of the alternator—it can be heavier than you expect. Support it with one hand while removing the last bolt with the other to avoid dropping it.

Credit: www.youtube.com

Visual Inspection

Visual inspection is the first step to test an alternator outside the car. It helps spot obvious problems before using tools. Careful observation can save time and effort in repairs. Checking each part for damage or wear is essential.

Checking For Physical Damage

Look closely at the alternator’s body. Cracks, dents, or corrosion may affect its performance. Check for broken or missing parts. Rust can cause poor connections and reduce efficiency. Clean the surface gently to see all damage clearly.

Inspecting The Pulley And Bearings

Spin the pulley by hand to test its movement. It should turn smoothly without noise or resistance. Listen for grinding or squeaking sounds. Worn bearings cause rough rotation and can fail soon. Check the pulley for bends or wear on the edges.

Examining The Wiring

Inspect all wires connected to the alternator. Look for frayed, cracked, or burnt wires. Loose or corroded connectors reduce electrical flow. Use a flashlight to check inside connectors. Secure any loose wires and clean corroded terminals for better contact.

Testing With A Multimeter

Testing an alternator off the car requires a multimeter to measure voltage and resistance. Connect the multimeter to the alternator terminals and check for proper output and continuity. This simple test helps identify if the alternator is functioning correctly before reinstalling.

Testing an alternator off the car using a multimeter is a practical skill that can save you time and money. Whether you’re a seasoned DIY mechanic or just curious about car maintenance, understanding how to use a multimeter effectively is key. This process involves a few critical steps that ensure your alternator is functioning properly.

Setting Up The Multimeter

Begin by ensuring your multimeter is set to the correct settings. You’ll typically use the Ohm setting for resistance and the DC voltage setting for voltage output. Make sure your multimeter’s probes are securely connected, with the black probe in the COM jack and the red probe in the VΩ jack.

Measuring Resistance

Resistance measurement is vital to check the alternator’s internal components. Place the probes across the alternator’s terminals. A reading that is too high or too low indicates a problem with the alternator’s windings or diodes. Aim for a consistent reading that matches your alternator’s specifications.

Checking Diode Function

The diodes within an alternator are crucial for converting AC to DC power. Switch your multimeter to the diode test mode. Touch the probes to the alternator terminals and look for a reading that suggests forward biasing. A reading of zero or infinity means the diode is faulty and needs replacement.

Testing Voltage Output

Finally, test the voltage output to ensure the alternator can charge the battery properly. Set your multimeter to the DC voltage setting. Connect the probes to the alternator’s output terminal and ground. A healthy alternator should produce a voltage between 13.5 and 14.5 volts. If the voltage is outside this range, the alternator may be undercharging or overcharging. By methodically working through these steps, you gain a clearer picture of your alternator’s health. Does your multimeter give a reading that puzzles you? Don’t hesitate to seek advice or further resources. With practice, testing an alternator with a multimeter becomes second nature.

Credit: www.youtube.com

Using A Battery Charger

Using a battery charger to test an alternator off the car is a simple and effective method. It helps check if the alternator can produce voltage and handle load outside the vehicle. This process simulates real working conditions safely on a bench. Understanding these steps improves your confidence in diagnosing alternator problems.

Connecting The Alternator To Charger

Start by securing the alternator on a stable surface. Connect the battery charger’s positive lead to the alternator’s positive terminal. Attach the negative lead to the alternator housing or the negative terminal. Ensure all connections are tight to avoid sparks or loose contacts. Use insulated tools to prevent accidental short circuits.

Simulating Operating Conditions

Turn on the battery charger and set it to a low voltage. Gradually increase the voltage to around 13.5 to 14 volts. This mimics the alternator’s normal working voltage in a car. Spin the alternator pulley by hand or with a drill at a steady speed. This action simulates engine rotation and allows the alternator to generate current.

Observing Performance

Watch the battery charger’s display for voltage and current output. A healthy alternator should maintain voltage between 13 and 15 volts under load. Check for unusual noises or vibrations during spinning. Note any drop in voltage or failure to generate power. These signs indicate possible alternator faults or worn components.

Interpreting Results

Testing an alternator off the car shows if it charges properly. A steady voltage reading means the alternator works well. Fluctuating or low voltage indicates a problem that needs fixing.

Interpreting Results After testing an alternator off the car, understanding the results is crucial. It’s not just about seeing numbers; it’s about deciphering what they mean for your car’s health. This section will guide you through making sense of those readings.

Identifying Common Issues

The most frequent issue you might encounter is a low voltage reading. This often indicates a failing alternator. Another common problem could be inconsistent voltage output, which suggests the alternator is on its last legs. A buzzing noise or strange smell during testing can also signal trouble. These could mean worn-out bearings or a short circuit. Always be on the lookout for these signs.

When To Repair Or Replace

If your alternator’s voltage is slightly below normal, consider a repair. Cleaning the terminals or replacing a diode might solve the issue. This can save you time and money. However, if the alternator shows no output or severe inconsistencies, replacement is your best bet. You don’t want to risk getting stranded. Think about how often you drive and the age of your car when deciding. Have you ever had an alternator fail unexpectedly? It’s not just inconvenient; it can be dangerous. Knowing when to repair or replace can prevent a lot of headaches.

Reinstalling The Alternator

Reinstalling the alternator is a key step after testing it outside the car. Proper installation ensures the alternator works smoothly and safely. Take your time to place it correctly and secure all connections. This process helps avoid future electrical or mechanical issues.

Positioning And Bolting

Start by carefully placing the alternator back into its mounting spot. Align the bolt holes precisely with the bracket on the engine. Insert the bolts by hand to avoid cross-threading. Tighten the bolts evenly using a wrench or socket. Ensure the alternator sits firmly without any movement. Proper positioning prevents belt misalignment and wear.

Reconnecting Electrical Wires

Connect all electrical wires to the alternator terminals. Match each wire to its original terminal to avoid damage. Secure wires with their nuts or clips to ensure good contact. Double-check that no wires are loose or touching engine parts. Proper wiring is vital for charging and electrical system performance.

Final Checks

• Inspect the belt tension and adjust if needed.
• Verify all bolts and connections are tight.
• Look for any signs of loose wires or parts.
• Turn the engine on and watch for unusual noises.
• Check the dashboard battery light for proper function.

These final checks confirm a safe and correct alternator installation. They help avoid breakdowns and ensure your car charges properly.

Tips For Maintenance

Proper maintenance helps keep your alternator in good condition. It reduces the chance of sudden failures. Simple care steps extend its life and improve performance. Small efforts save money and time in the long run.

Regular Inspections

Check the alternator often for signs of wear or damage. Look for loose wires, cracks, or worn belts. Listen for unusual noises during engine operation. Spotting problems early avoids costly repairs. Use a flashlight to see hard-to-reach areas clearly.

Cleaning And Lubrication

Keep the alternator clean from dirt and grease. Use a soft brush or cloth to remove debris. Avoid spraying water or harsh chemicals directly on it. Lubricate moving parts lightly to prevent rust and friction. Clean parts work better and last longer.

Monitoring Electrical System

Watch the vehicle’s electrical system for any irregularities. Dim lights or battery warnings may signal alternator issues. Test battery voltage regularly to check charging levels. Use a multimeter to measure output and ensure proper function. Early detection keeps your car running smoothly.

Credit: www.zcar.com

Frequently Asked Questions

How Do You Test An Alternator Off The Car?

To test an alternator off the car, use a multimeter to check resistance and output voltage. Connect the alternator to a power source and measure voltage at the output terminal. A healthy alternator typically produces around 13. 5 to 14.

5 volts.

What Tools Are Needed To Test An Alternator Off The Car?

You need a digital multimeter, a power supply or battery, and jumper wires. These tools help measure voltage, resistance, and ensure the alternator spins properly during testing.

Can You Test An Alternator Without A Car Battery?

Yes, you can test an alternator without a car battery by using an external power supply. It provides the necessary excitation current to the alternator for accurate testing.

What Voltage Should An Alternator Produce Off The Car?

An alternator should produce between 13. 5 and 14. 5 volts under test conditions. Voltages below or above this range indicate a faulty or damaged alternator.

Conclusion

Testing an alternator off the car helps find problems early. Use simple tools like a multimeter for quick checks. Keep safety in mind when handling electrical parts. Knowing how to test saves time and money on repairs. Practice this skill to keep your vehicle running well.

Regular checks help avoid unexpected breakdowns on the road. Stay calm and follow each step carefully for best results. This easy process gives you confidence in your car’s health.
